ON-688 CD3 Control Board with Quad-Probe Detection Interface, Precision Sensitivity Adjustment, and Industrial-Grade Components for Oshima APS Needle Detector

Name: ON-688 CD3 Control Board with Quad-Probe Detection Interface, Precision Sensitivity Adjustment, and Industrial-Grade Components for Oshima APS Needle Detector
Brand: Makerboni Mechanics (Shanghai) Co., Ltd.
SKU: ОН-688 CD3
Price: 50,000.00 USD
Availability: InStock

Номер модели:	ОН-688 CD3
МОК:	1 шт.
цена:	1-99999
Время доставки:	1-7дней
Условия оплаты:	Т/Т

Подробная информация

Характер продукции

Подробная информация

Место происхождения:

Китай

Выделить:

Quad-Probe Detection Interface Control Board

Precision Sensitivity Adjustment PCB

Industrial-Grade Component Selection Needle Detector Board

Характер продукции

ON-688 CD3 Control Board for Oshima APS Needle Detector

Professional Replacement & Performance Upgrade

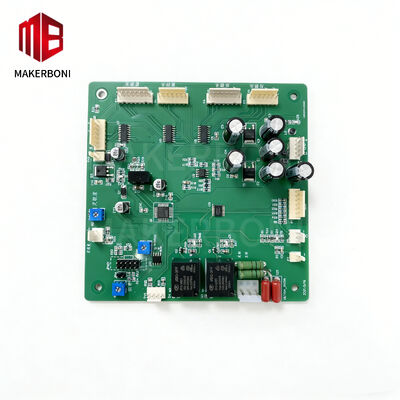

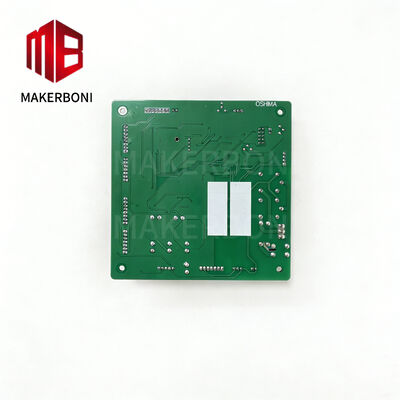

The ON-688 CD3 control board is a purpose-built core component engineered exclusively for the ON-688 CD3 APS needle detection machine, ensuring full compatibility with Oshima industrial sewing and cutting machine systems. As the central processing unit of the needle detection system, this PCB integrates precision signal conditioning, multi-probe interface design, and robust relay control logic to deliver reliable, high-performance metal needle detection for textile manufacturing environments.

Key Product Features & Advantages

Optimized Oshima Compatibility: Designed as a direct drop-in replacement for the original control board in Oshima-equipped ON-688 CD3 APS models, eliminating complex wiring or software adjustments and minimizing machine downtime during maintenance or upgrades.
Quad-Probe Detection Interface: Equipped with 4 dedicated probe connectors (2 front probes, 2 rear probes) to enable comprehensive, high-coverage scanning across the entire material path, drastically reducing the risk of missed needle fragments or metal contaminants.
Precision Sensitivity Adjustment: Integrated adjustable potentiometers allow fine-tuning of detection sensitivity to match varying fabric thicknesses, needle sizes, and production conditions, balancing maximum detection accuracy with effective noise rejection.
Industrial-Grade Component Selection: Built with high-quality electrolytic capacitors, resistors, integrated circuits, and relay modules (JQC-3FF) to ensure long-term stability, resistance to electrical interference, and reliable operation in high-vibration factory environments.
Reliable Actuation Control: Dual relay outputs provide secure, fail-safe control over machine safety functions such as emergency stop, alarm triggering, and material sorting, ensuring compliance with industrial safety standards.
Robust PCB Design: Multi-layer printed circuit board with optimized signal routing and component placement enhances signal integrity, reduces crosstalk, and improves thermal dissipation for continuous 24/7 production use.

Technical Specifications

Parameter	Details
Product Model	ON-688 CD3 Control Board
Compatible System	ON-688 CD3 APS Needle Detector (Oshima machines)
Probe Interface	4 channels (2 front, 2 rear)
Control Output	2-channel relay (JQC-3FF, 10A/250VAC)
Sensitivity Adjustment	Manual potentiometer control
Operating Voltage	24V DC (industrial standard)
PCB Dimensions	Standard form factor for Oshima APS enclosure
Mounting	4-point screw mounting
Construction	Industrial-grade FR-4 PCB, RoHS compliant components

Applications & Use Cases

The ON-688 CD3 control board is the ideal solution for textile manufacturers, garment factories, and quality control facilities relying on Oshima APS needle detection systems. It is perfectly suited for:

Direct replacement of faulty or outdated control boards in existing ON-688 CD3 machines
Upgrading legacy detection systems to improve sensitivity and reliability
Ensuring compliance with international quality standards for textile products by preventing metal needle contamination in finished goods
Supporting continuous production in high-volume apparel, home textile, and luggage manufacturing operations

By combining Oshima-specific compatibility, advanced multi-probe detection, and industrial-grade durability, the ON-688 CD3 control board delivers a cost-effective, high-performance solution for maintaining and enhancing needle detection capabilities in critical textile production workflows.
